Brand: Corinthian Doors
Collection: Manhattan
Priced per: Door
Availability: Special order

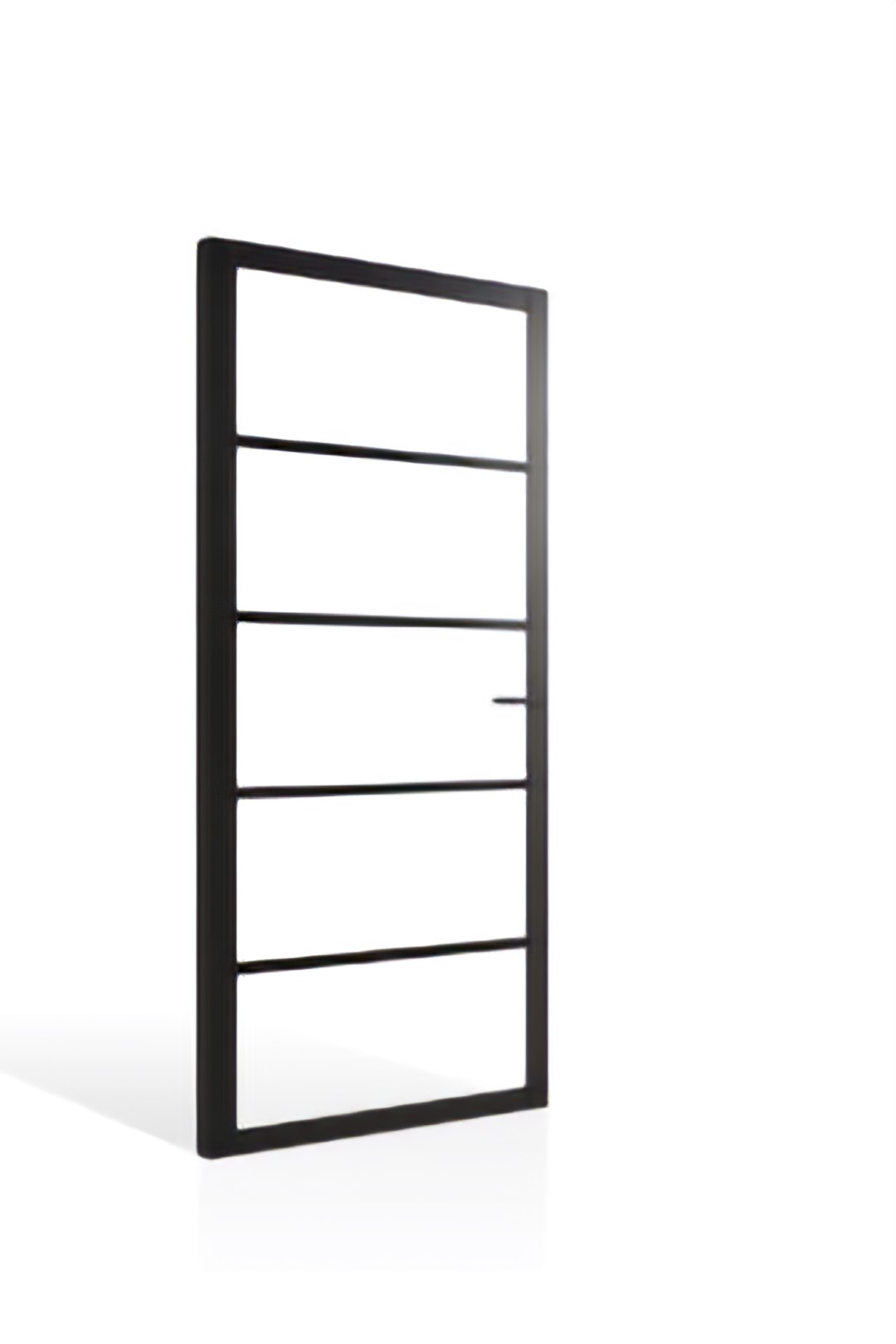

Corinthian Manhattan BHAT 12G Black Primed Glazed Interior Door

Name: Corinthian Manhattan BHAT 12G Black Primed Glazed Interior Door
Brand: JBM Online
SKU: JBM-COR-BHAT12G
Availability: PreOrder

SKU JBM-COR-BHAT12G-C2040X820

From $930.00 / door

Special order

Prices include GST (10%).

Priced per item.

Size

Attica lock routing

Not required Rout for an Attica lock (any configuration), prehung 2040/2340 doors + $238.70 · confirmed by JBM

Quickslide

Not required Rout and fit Quickslide, prehung 2040/2340 doors + $194.70 · confirmed by JBM

Attica concealed hinge routing

Not required Rout for Attica concealed hinges, prehung 2040/2340 doors + $238.70 · confirmed by JBM

Number of doors

Minimum 1, ordered in steps of 1.

Quantity1 door

Price$930.00 / door

Product total $930.00

Prices include GST (10%). Includes $84.55 GST. Delivery is not included and is calculated separately.

This is a special-order item. JBM will confirm lead time before it is supplied.

Totals are calculated on the server. Change an option or quantity and use a button above to see the updated figure.

Warehouse pickup 12 Industrial Dr Melton Victoria 3337
7:30am To 4:pm

Delivery JBM delivers across Victoria. Freight depends on the length, weight and handling of what you order as well as the address, so it is confirmed before your order is accepted rather than estimated here.

Delivery or click and collect

About this product

A black primed stile and rail door with full-height glass, in a slim steel-look frame. Made to order by Corinthian Doors.

Double door applications need a mushroom stop (the Manhattan hinged pair stop is sold separately).
Glass motifs are applied to clear glass where the Australian Standard requires them.
Attica lock kits and Attica concealed hinges are sold separately.
Special sizes are not available.
All sizes are nominal and in millimetres. Doors are supplied raw (unfinished); the doors pictured are professionally finished.
Door furniture shown in pictures is sold separately.
Pictures may not exactly depict the design or specification.

Specifications

Brand	Corinthian Doors
Collection	Manhattan
Design code	BHAT 12G
Finish	Black primed
Construction	Stile and rail joinery
Glass	Clear: 8mm toughened clear glass. Translucent: 8.38mm laminated translucent glass. Complies with AS1288:2006
Rails and arch	25mm and 45mm wide x 9mm deep
Primed	Matt black primer on all sides and edges, including the intermediate rails
Hardware	Stiles take a maximum 30/34mm backset and 50mm mortice depth; doors are routed for Attica hardware, which is sold separately
Hinges	3 hinges recommended and required
Trimming allowance	3mm from top, bottom and each stile
Approx. weight	33 to 36kg (based on a 2040 x 820 door)
Acoustic rating	Rw32, STC 32
Sizes	Nominal, in millimetres (height x width x thickness)
Warranty	5 years from Corinthian Doors (manufacturer's terms and conditions apply)
Sold by	Priced per item

Sizes and availability

Each size is a separate stock item with its own SKU.
Option	SKU	Availability
Clear glass, 2040x520x35	JBM-COR-BHAT12G-C2040X520	Special order
Clear glass, 2040x620x35	JBM-COR-BHAT12G-C2040X620	Special order
Clear glass, 2040x720x35	JBM-COR-BHAT12G-C2040X720	Special order
Clear glass, 2040x770x35	JBM-COR-BHAT12G-C2040X770	Special order
Clear glass, 2040x820x35	JBM-COR-BHAT12G-C2040X820	Special order
Clear glass, 2040x870x35	JBM-COR-BHAT12G-C2040X870	Special order
Clear glass, 2040x920x35	JBM-COR-BHAT12G-C2040X920	Special order
Clear glass, 2150x1000x35, face of wall sliding	JBM-COR-BHAT12G-C2150X1000-FW	Special order
Clear glass, 2340x520x35	JBM-COR-BHAT12G-C2340X520	Special order
Clear glass, 2340x620x35	JBM-COR-BHAT12G-C2340X620	Special order
Clear glass, 2340x720x35	JBM-COR-BHAT12G-C2340X720	Special order
Clear glass, 2340x770x35	JBM-COR-BHAT12G-C2340X770	Special order
Clear glass, 2340x820x35	JBM-COR-BHAT12G-C2340X820	Special order
Clear glass, 2340x870x35	JBM-COR-BHAT12G-C2340X870	Special order
Clear glass, 2340x920x35	JBM-COR-BHAT12G-C2340X920	Special order
Clear glass, 2450x1000x35, face of wall sliding	JBM-COR-BHAT12G-C2450X1000-FW	Special order
Translucent glass, 2040x520x35	JBM-COR-BHAT12G-T2040X520	Special order
Translucent glass, 2040x620x35	JBM-COR-BHAT12G-T2040X620	Special order
Translucent glass, 2040x720x35	JBM-COR-BHAT12G-T2040X720	Special order
Translucent glass, 2040x770x35	JBM-COR-BHAT12G-T2040X770	Special order
Translucent glass, 2040x820x35	JBM-COR-BHAT12G-T2040X820	Special order
Translucent glass, 2040x870x35	JBM-COR-BHAT12G-T2040X870	Special order
Translucent glass, 2040x920x35	JBM-COR-BHAT12G-T2040X920	Special order
Translucent glass, 2150x1000x35, face of wall sliding	JBM-COR-BHAT12G-T2150X1000-FW	Special order
Translucent glass, 2340x520x35	JBM-COR-BHAT12G-T2340X520	Special order
Translucent glass, 2340x620x35	JBM-COR-BHAT12G-T2340X620	Special order
Translucent glass, 2340x720x35	JBM-COR-BHAT12G-T2340X720	Special order
Translucent glass, 2340x770x35	JBM-COR-BHAT12G-T2340X770	Special order
Translucent glass, 2340x820x35	JBM-COR-BHAT12G-T2340X820	Special order
Translucent glass, 2340x870x35	JBM-COR-BHAT12G-T2340X870	Special order
Translucent glass, 2340x920x35	JBM-COR-BHAT12G-T2340X920	Special order
Translucent glass, 2450x1000x35, face of wall sliding	JBM-COR-BHAT12G-T2450X1000-FW	Special order
